Please Call for Pricing

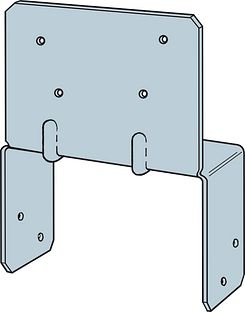

Simpson Strong LPCZ Light Post Cap

Simpson Strong-Tie

SKU: 717304 UPC: 00044315990601

Available Inventory: 7

Options

The LPCZ is designed for a variety of connections between a 4x or 6x beam and a post. This versatile, light post cap has an adjustable design that allows for connection versatility in both new and retrofit applications where structural support is needed. The LPCZ has a ZMAX^® coating, a thicker galvanized finish that helps to extend the service life of the connector.

Key Features

Always install in pairs; universal design eliminates need for rights and lefts
Stronger than angled nailing or screw fastening; eliminates nailing into end grain
Can be installed after beams have been put in place

Material

LPC4Z — 18 gauge; LPC6Z — 16 gauge

Finish

ZMAX coating

Installation

Use all specified fasteners; see General Notes
Install all models in pairs
2 1/2" beams may be used if 0.148" x 1 1/2" nails are substituted for 0.148" x 3" nails
